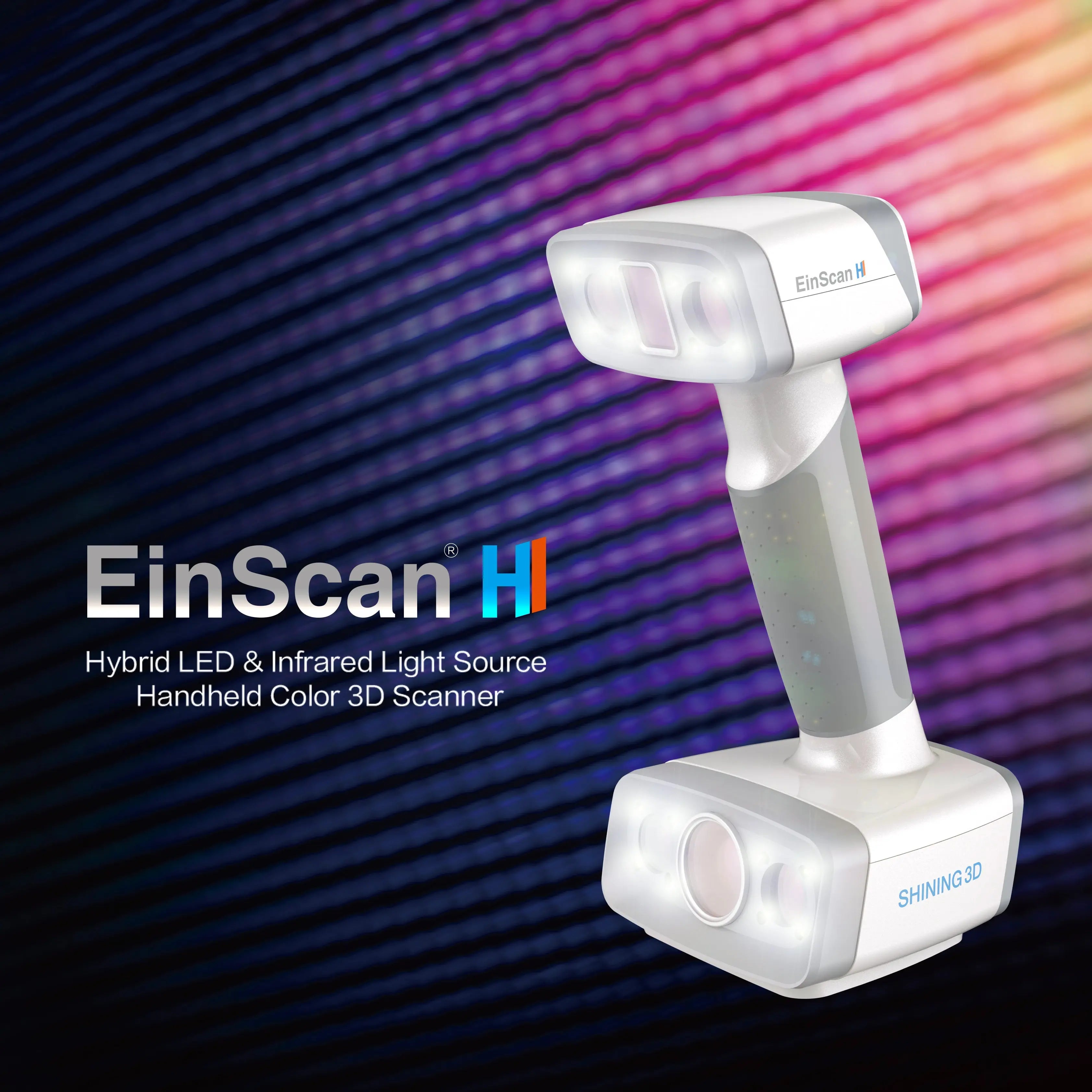

EinScan H - 3D Scanner

EinScan H - 3D Scanner

With strengths of technical accumulation on 3D vision technology in more than a decade, SHINING 3D is now introducing its new developed handheld 3D scanner, EinScan H.

Based on hybrid structure light technology of LED and invisible infrared light, EinScan H is making human face scanning more comfortable without strong light. With a built-in color camera and large fi eld of view, EinScan H provides high quality 3D data with full color ready-to use in minutes.

TECHNICAL SPECIFICATIONS EinScan H

Scan Mode Standard Scan Body Scan Face Scan

Light Source White Light, visible Infrared light, invisible

Safety LED light (eye-safe) CLASS I (eye-safe)

Scan Accuracy Up to 0.05mm Up to 0.6mm

Volumetric Accuracy* 0.05+0.1mm/m /

Scan & Align Speed 1,200,000points/s, 20FPS 720,000points/s, 20FPS

Align Modes Camera Frame Rate 55FPS

Working Distance 470mm

Depth of Field 200-700mm 200-1500mm

Maximum Scan Range 420mm*440mm 780mm*900mm

 Built-in Color Camera Yes

Color Scanning Support

Connection Standard USB3.0

Output Format OBJ, STL, PLY, P3, 3MF

Dimension 108mm*110mm*237mm

Weight 703g

Certifi cation CE, FCC, ROHS, WEEE, KC

Recommend Confi guration OS:Win10, 64 bit; Graphics card: NVIDIA GTX1080 and higher; Video memory: ≥4GB; Processor: I7-8700; Memory: ≥32GB
