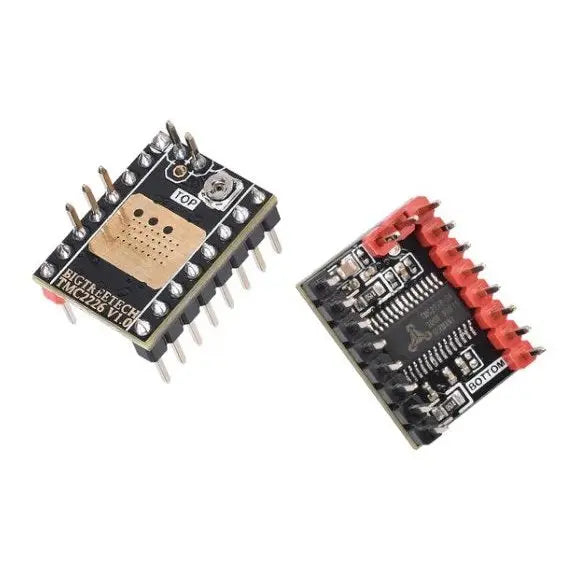

Stepper Motor Driver - TMC2226 V1.0 - 2.8A Coil Current

Stepper Motor Driver - TMC2226 V1.0 - 2.8A Coil Current

BigTree

2-phase stepper motor up to 2.8A coil current (peak).

2A RMS STEP/DIR Interface with 8, 16, 32, or 64 microstep pin setting.

Smooth Running 256 microsteps by MicroPlayer™ interpolation.

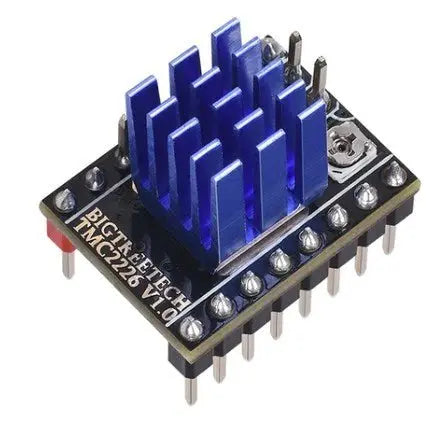

Large area heat dissipation.

StealthChop2 enables motor to work quietly.

SpreadCycle highly dynamic motor control chopper.

CoolStep current control for energy savings up to 75%.

Helps avoid problems such as running deviation losing steps and faults from overloading.

Low RDSon, Low Heat-up LS 170mΩ & HS 170mΩ (typ. at 25°C)

Voltage Range 4.75 29V DC
