Tiertime X5 Continuous 3D Printer

Tiertime X5 Continuous 3D Printer

Regular price $8,350.00 AUD
Regular price Sale price $8,350.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

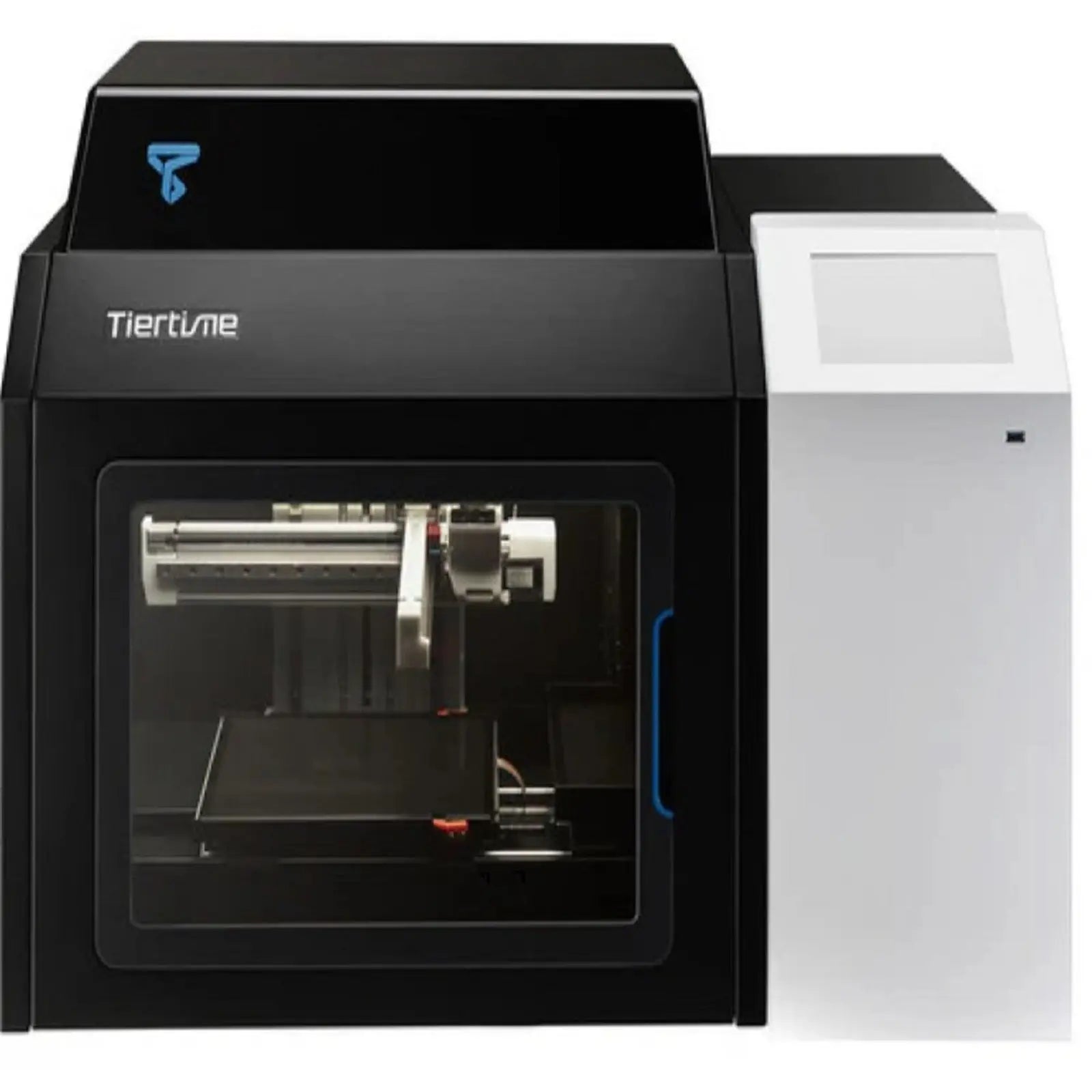

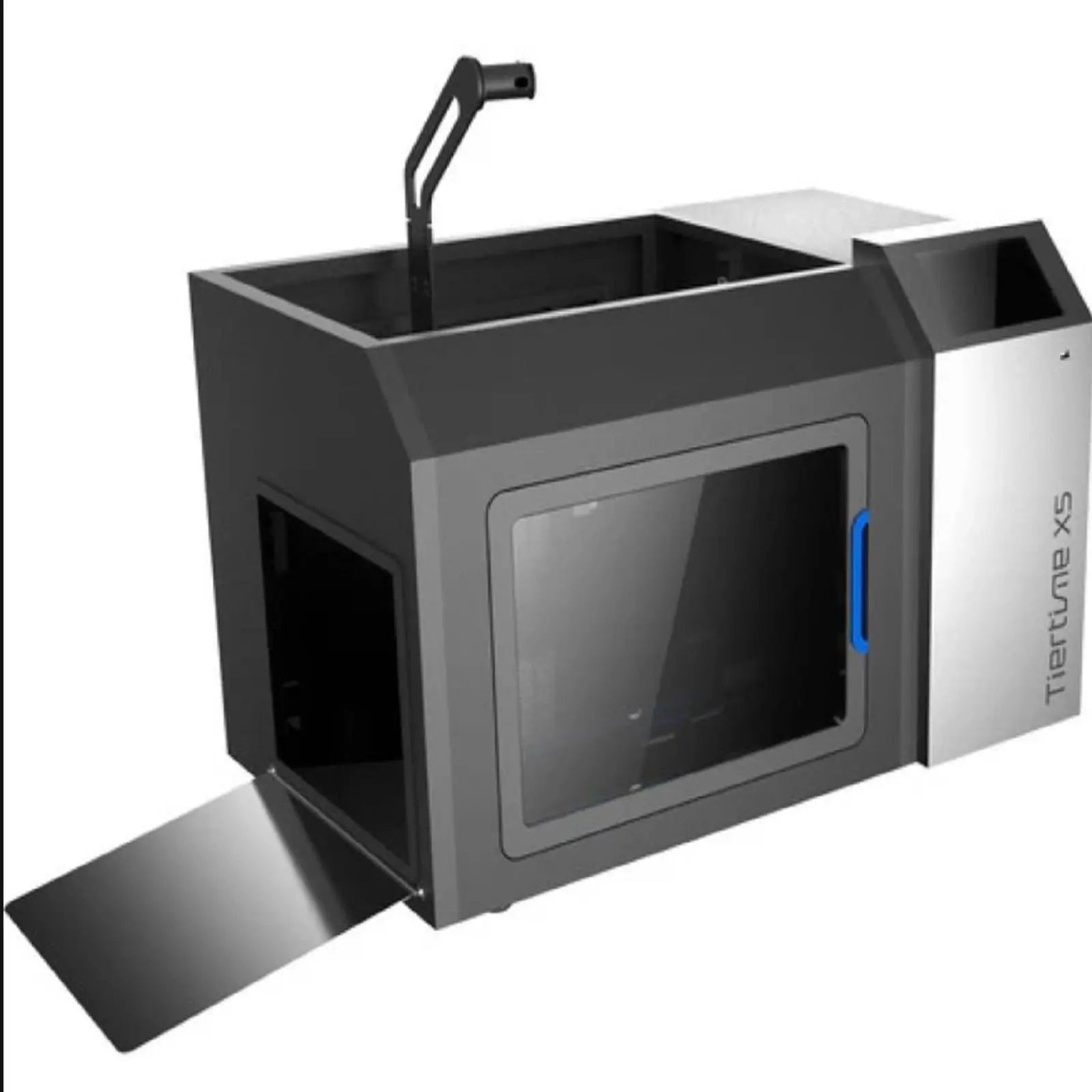

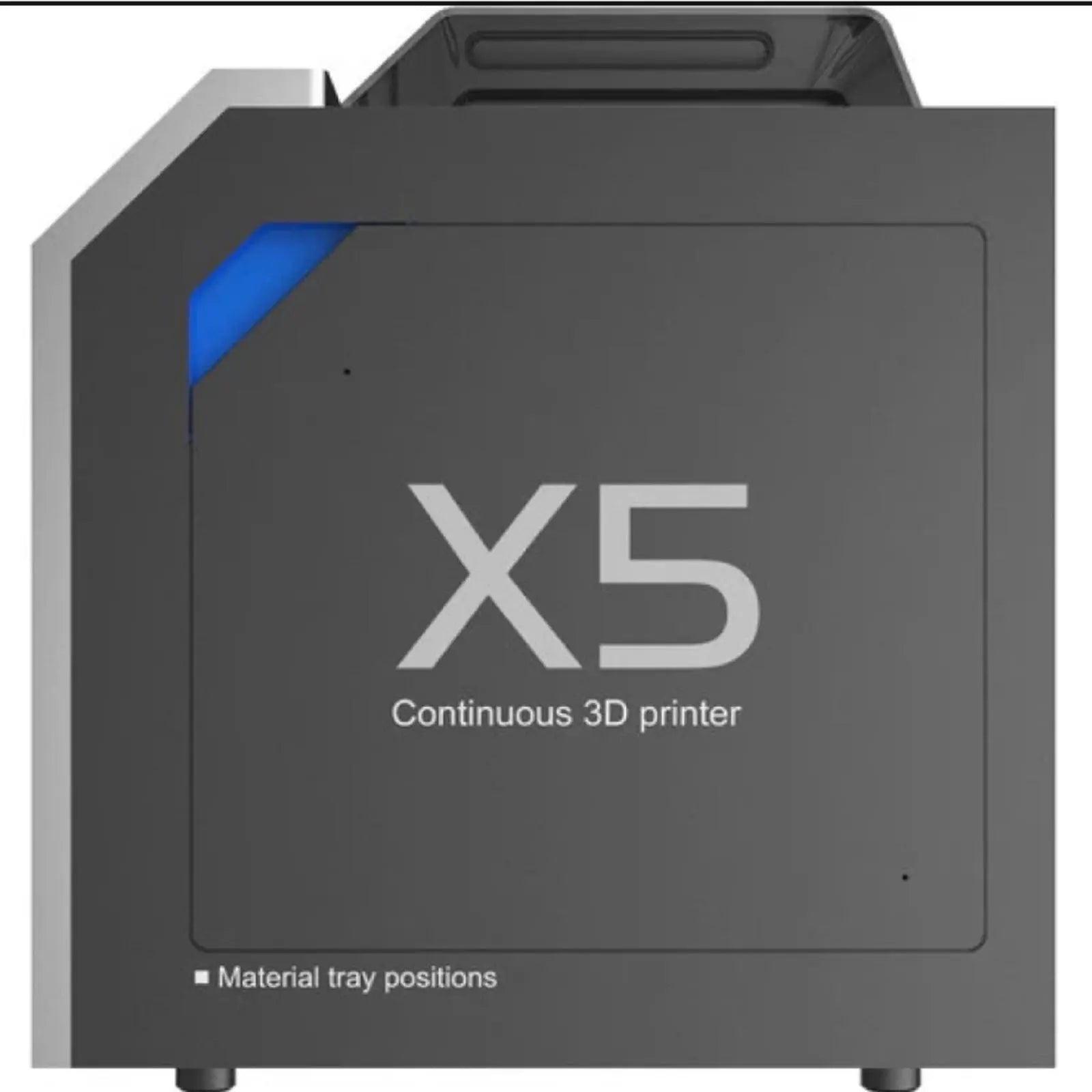

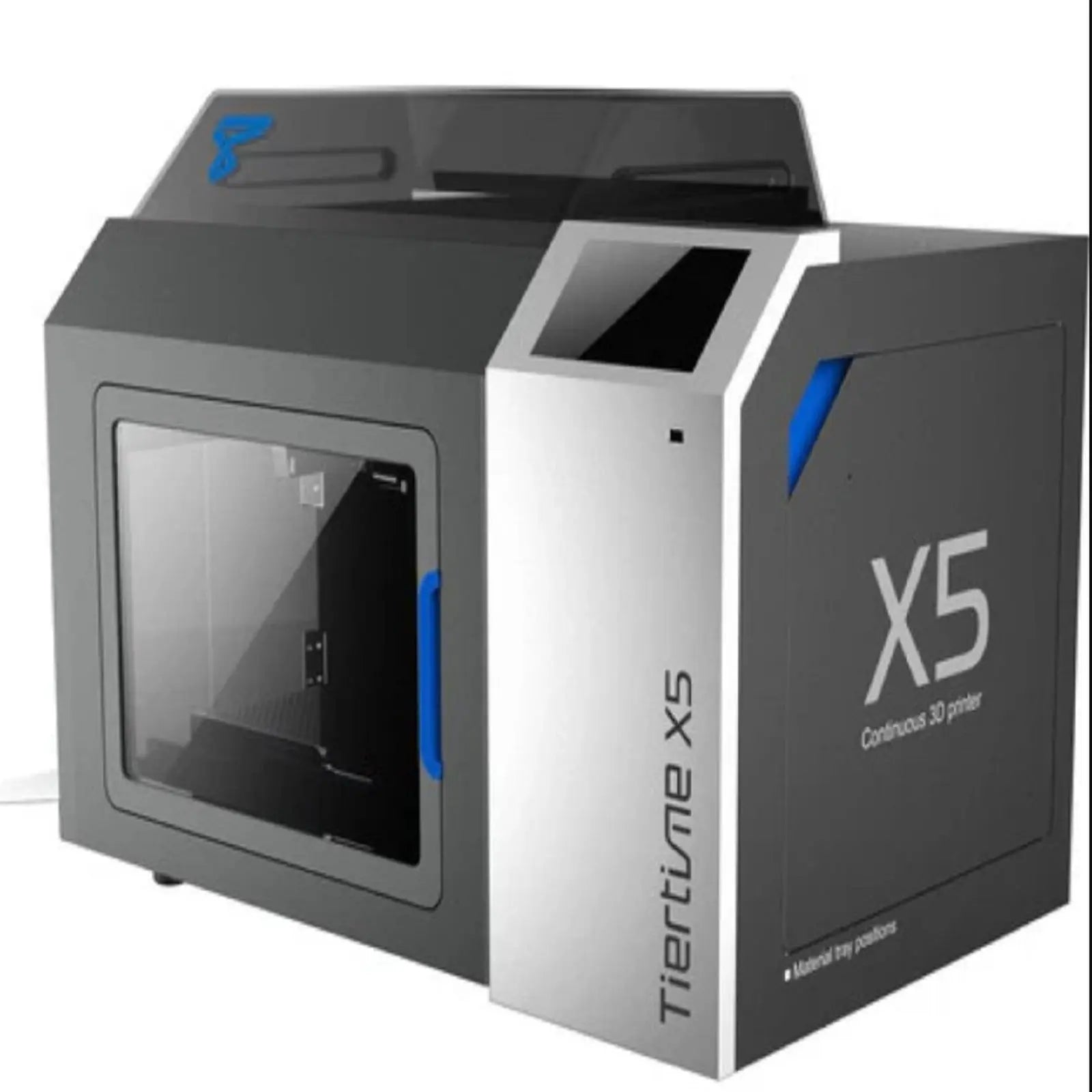

Meet the X5

A breakthrough in production 3D printing and designed for reliability and repeatability. Capable of automatically loading up to 12 build plates and reloading during printing, The X5 provides a seamless

3D printing experience with unmatched throughput and minimal operator intervention. With its innovative build-plate reloading system, the X5 can continuously print with little user intervention. If a print job finishes at 2 am, that's no problem for the X5 as it will eject the completed print and start on the next queued job.

Providing designers, engineers and educators access to continuous 3D printing.



Printer

Printing Technology  MEM  (Melted Extrusion Modelling)
Extruder Single 1 pc PLA Extruder included
Nozzle Diameter 0.2mm, 0.4mm, 0.6mm, and 0.5mm (TPU)
Extruder Maximum Temperature 299℃
Extruder Maximum Travel Speed 200 mm/sec
XYZ Accuracy 7, 7, 1.5 micron
Connectivity USB Cable, Wi-Fi, LAN and USB Drive
Display 7″ Full Colored LCD Touchscreen
Build Volume 180 × 230 × 200 mm (7″ x 9″ x7.8″)(XYZ)
Printed Object Accuracy ±0.1mm/100mm
Layer Resolution 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4mm
Build Plate Maximum Temperature 100℃
Calibration and Levelling Auto Calibration and Leveling between Each Print Job
Build Plate Surface Perforated, Heated
Pause to Change Filament Type Yes
Out of Filament Detection Yes
Filament UP Fila ABS,  ABS+,  PLA,  TPU and more * Requires ABS or TPU print heads, sold separately.
Filament Diameter 1.75mm
Filament Bay Capacity 500 – 2000g
Filament Holder Capacity 500 – 1000g
Compatible with 3rd Party Filament Yes



Software

Software UP Studio Version 2.5 or above
Supported OS Windows 7 (SP1) or higher (32 bit and 64 bit) Mac OS 10.10
Hardware Requirements OpenGL 2.0 At least 4GB of RAM
Importable File Formats .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds
Preview Support Structures Yes
Editable Support Structures Yes

Physical Dimensions

Machine Dimensions 850 x 625 x 520 mm (33.4″ x 24.6″ x 20.5″)
Net Weight 52kg
Shipping Box Dimensions
Shipping Box Weight 70kg
